Details:

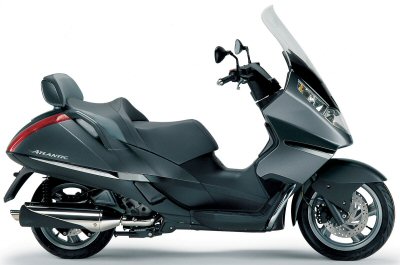

Aprilia Atlantic 500 motorcycles specifications
read comments (-) | add comments
Model  Aprilia
Year  2005
Category  Scooter
Displacement  460.00 ccm (28.07 cubic inches)
Engine type  Single cylinder
Stroke  4
Power  29.00 HP (21.2 kW) @ 7250 RPM
Torque  40.00 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM
Compression  10.5:1
Bore x stroke  92.0 x 69.0 mm (3.6 x 2.7 inches)
Fuel system  Injection. Electronic.
Valves per cylinder  4
Fuel control  SOHC
Ignition  Electronic
Starter  Electric
Lubrication system  Forced wet crankcase lubrication with trochoidal pump
Cooling system  Liquid
Gearbox  Automatic
Transmision type final drive  -
Clutch  Automatic centrifugal dry clutch
More details  -
Dry weight  -
Weight incl, oil, gas, etc  -
Seat height  678 mm (26.7 inches) If adjustable, lowest setting.
Alternate seat height  -
Overall height  -
Overall length  -
Overall width  -
Ground clearance  250 mm (9.8 inches)
Wheelbase  770 mm (30.3 inches)
Frame type  High-tensile double-cradle tubular lattice with high flexional and torsional rigidity
Rake (fork angle)  -
Trail  -
Front suspension  Telescopic hydraulic fork, 40 mm dia. sleeves.
Front suspension travel  110 mm (4.3 inches)
Rear suspension  Engine functions as swinging fork swingarm, linked to the frame by dual connecting rods and two radial silent blocks. Double hydraulic double-action shock absorber with preload adjustment
Rear suspension travel  -
Front tyre dimensions  120/70-15
Rear tyre dimensions  140/60-14
Front brakes  Single disc
Front brakes diameter  320 mm (12.6 inches)
Rear brakes  Single disc
Rear brakes diameter  220 mm (8.7 inches)
Exhaust system  -
Top speed  -
Power/weight ratio  -
Fuel capacity  -
Reserve fuel capacity  -
Fuel consumption pr. 10 km (6.2 miles)  -
Color options  Hilton Blue, Magnet Grey
