Model : Honda , Year : 2005 , Category : Cross / motocross , Displacement : 125.00 ccm (7.63 cubic inches) , Engine type

Details:

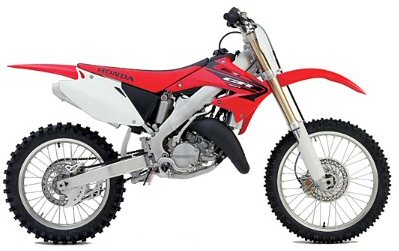

Honda CR 125 R motorcycles specifications
read comments (-)	\|	add comments

Model

Honda

Year

2005

Category

Cross / motocross

Displacement

125.00 ccm (7.63 cubic inches)

Engine type

Single cylinder

Stroke

Power

Torque

Compression

8.6:1

Bore x stroke

54.0 x 54.5 mm (2.1 x 2.1 inches)

Fuel system

Carburettor. 38.0mm Mikuni TMX with throttle position sensor (TPS)

Valves per cylinder

Fuel control

Ignition

Digital ignition with three-dimensional mapping and electronic advance

Starter

Lubrication system

Cooling system

Liquid

Gearbox

5-speed

Transmision type final drive

Clutch

More details

Dry weight

87.5 kg (192.9 pounds)

Weight incl, oil, gas, etc

Seat height

947 mm (37.3 inches) If adjustable, lowest setting.

Alternate seat height

Overall height

Overall length

Overall width

Ground clearance

351 mm (13.8 inches)

Wheelbase

1,471 mm (57.9 inches)

Frame type

Rake (fork angle)

Trail

100 mm (3.9 inches)

Front suspension

46.0mm inverted Kayaba cartridge fork with 18-position rebound and 20-position compression-damping adjustability

Front suspension travel

318 mm (12.5 inches)

Rear suspension

Pro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns);

Rear suspension travel

318 mm (12.5 inches)

Front tyre dimensions

80/70-21

Rear tyre dimensions

100/90-19

Front brakes

Single disc. 2-piston calipers

Front brakes diameter

240 mm (9.4 inches)

Rear brakes

Single disc

Rear brakes diameter

240 mm (9.4 inches)

Exhaust system

Top speed

Power/weight ratio

Fuel capacity

7.57 litres (2.00 gallons)

Reserve fuel capacity

Fuel consumption pr. 10 km (6.2 miles)

Color options

Red
