Model : Honda , Year : 2005 , Category : Cross / motocross , Displacement : 249.00 ccm (15.19 cubic inches) , Engine typ

Details:

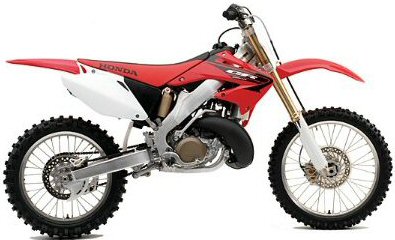

Honda CR 250 R motorcycles specifications
read comments (-)	\|	add comments

Model

Honda

Year

2005

Category

Cross / motocross

Displacement

249.00 ccm (15.19 cubic inches)

Engine type

Single cylinder

Stroke

Power

Torque

Compression

8.5:1

Bore x stroke

66.4 x 72.0 mm (2.6 x 2.8 inches)

Fuel system

Carburettor. 38.0mm Mikuni TMX flat-slide with throttle position sensor (TPS)

Valves per cylinder

Fuel control

Ignition

CD with three-dimensional mapping and electronic advance

Starter

Electric & kick

Lubrication system

Cooling system

Liquid

Gearbox

5-speed

Transmision type final drive

Clutch

More details

Dry weight

96.6 kg (213.0 pounds)

Weight incl, oil, gas, etc

Seat height

942 mm (37.1 inches) If adjustable, lowest setting.

Alternate seat height

Overall height

Overall length

Overall width

Ground clearance

338 mm (13.3 inches)

Wheelbase

1,481 mm (58.3 inches)

Frame type

Rake (fork angle)

Trail

110 mm (4.3 inches)

Front suspension

47.0mm inverted Showa cartridge fork with 16-position rebound and 16-position compression-damping adjustability

Front suspension travel

315 mm (12.4 inches)

Rear suspension

Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns

Rear suspension travel

320 mm (12.6 inches)

Front tyre dimensions

80/70-21

Rear tyre dimensions

110/90-19

Front brakes

Single disc. 2-piston calipers

Front brakes diameter

240 mm (9.4 inches)

Rear brakes

Single disc

Rear brakes diameter

240 mm (9.4 inches)

Exhaust system

Top speed

Power/weight ratio

Fuel capacity

7.57 litres (2.00 gallons)

Reserve fuel capacity

Fuel consumption pr. 10 km (6.2 miles)

Color options

Red
